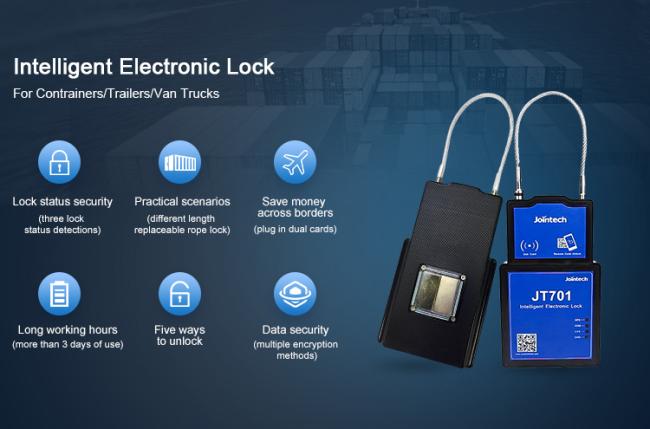

GPS Cable Seal For Container Cargo Transportation Secure Padlock Real Time Tracking Device
GPS container seal lock tracker JT701 is a high-tech product which is widely used for mobile asset and cargo transport secutiry. So far, we have distributed this product to more than 80 countries all over the world. The JT701 with 15000mAh large battery, low power consumption, can be used for more than 15 days if 1min/data.
What a great product!
1). Position of the container is provided by the GPS function; shown as a landmark on the map, and address or coordinate.
2). Door open/closed.
3). Battery charge level.
4). Indicate that the container door has been left open or imply that there has been an attempt to break-in.

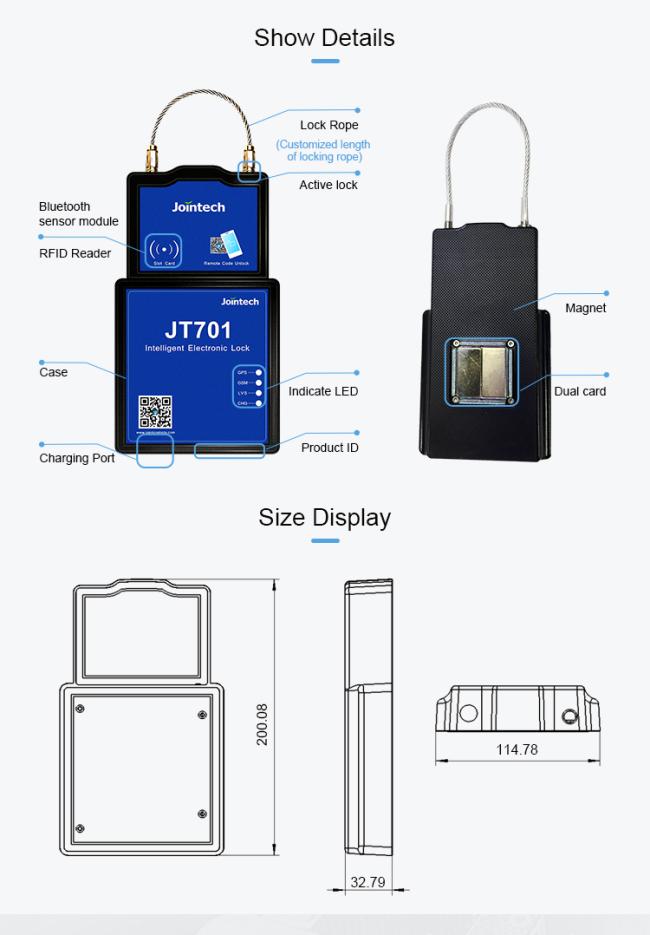

SPECIFICATION:
| Item | Note |
| Size | 195mm x 114mm x 37mm |
| Weight | 700g( Include main unit, antenna, battery, shell) |
| Material | Engineer plastic |
| GPS Module | Ublox MAX-7Q |
| GSM module | Quectel M35 |
| Working temperature | -20°C -- +60°C |
| Store temperature | -40°C -- +80°C |
| Humidity | 5%-99% |
| Standard battery | Rechargeable battery 15000mAh |
| Average working current | <90 mA |
| Average current stand by | <100uA |
| Waterproof standard | IP67 |
| Transmission mode | Support TCP(GPRS) or SMS(message) |

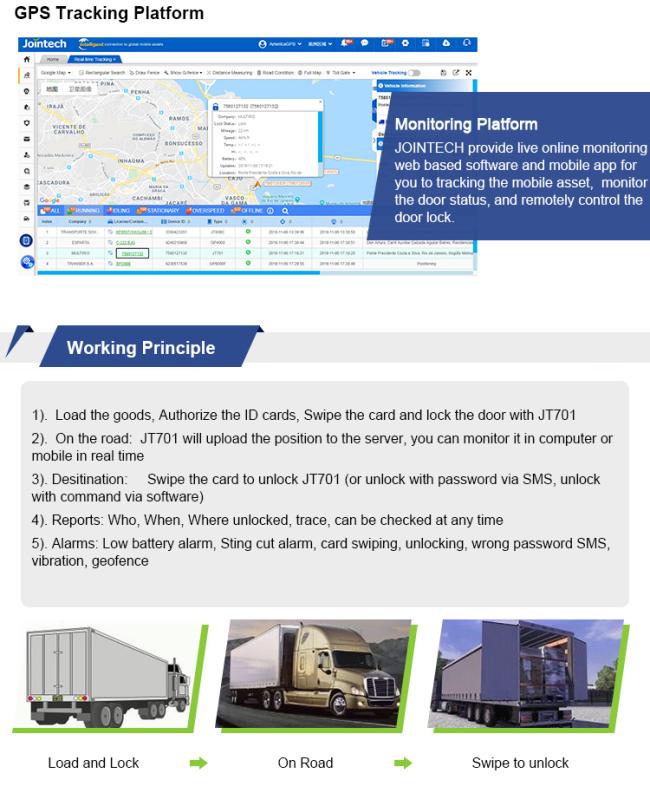

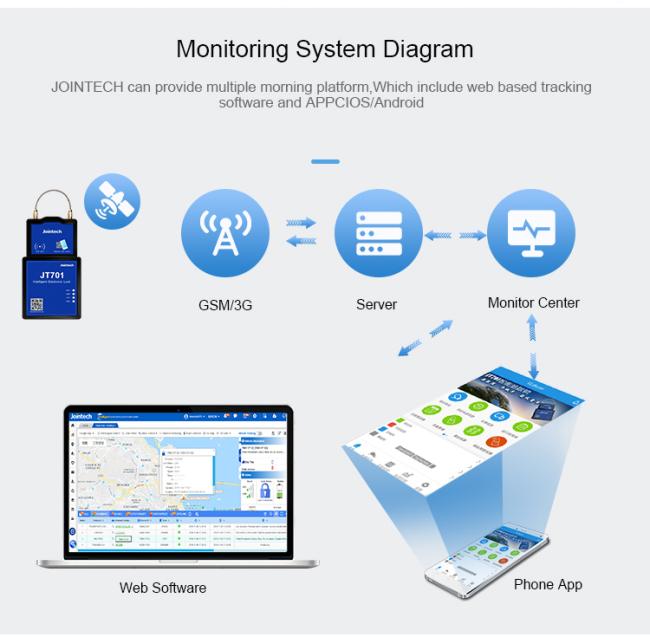

Monitoring System Diagram:
Jointech can provide multiple monitoring platfom, including web based GPS tracking software and fleet managment system.

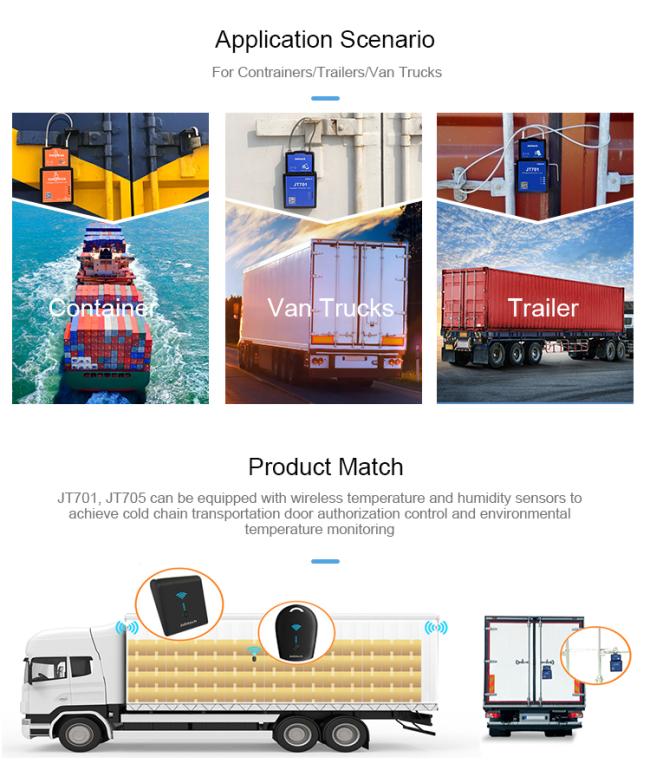

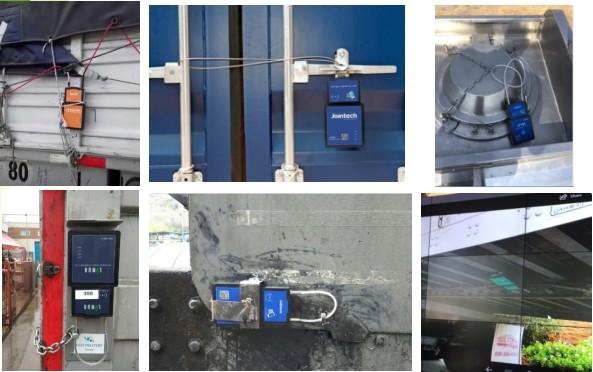

Application Scenario:
Container
Trailer
Van truck
Refrigerator Lorry

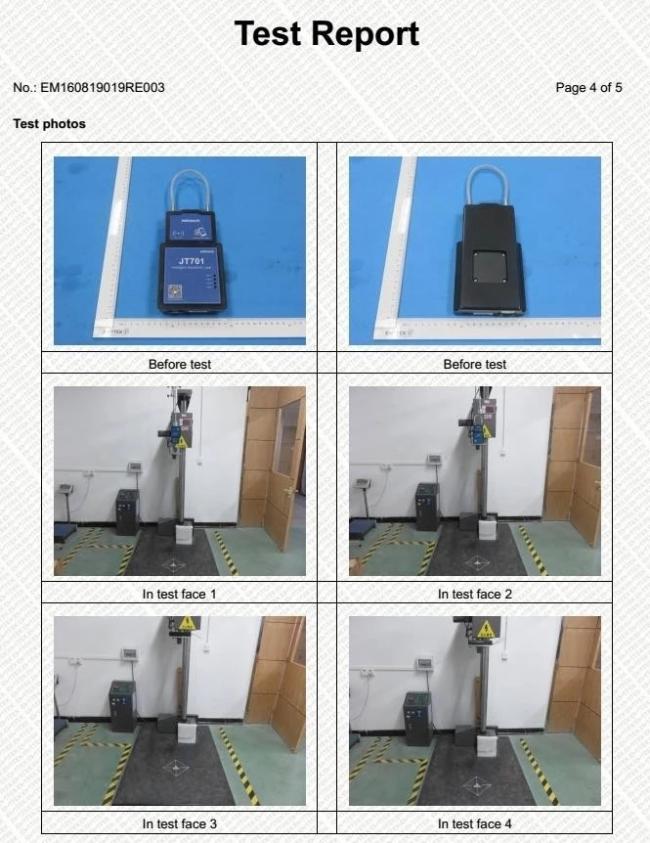

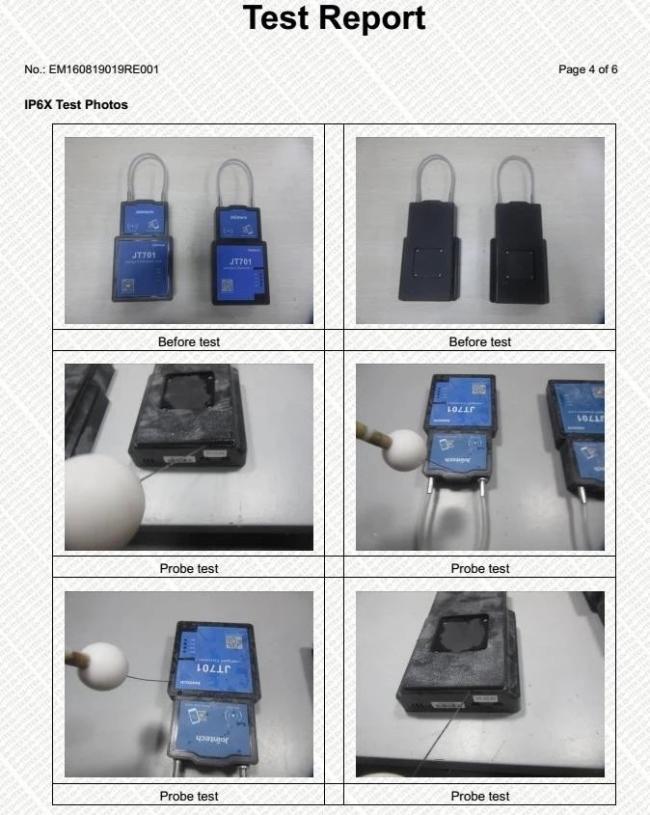

Product Test:
Company Profile:
RFQ:
Q: Do you have your own factory?
A: Yes, we are manufacturer in China for over 15 years located in Guangdong, China
Q: Why choose us?
A: We have worked with 50 customers from Fortune 500, which include Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.
Q: Do you have your own tracking platform?
A: Yes, we can provide not just web based tracking software, but also IOS/Android APPS
Q: Do you provide customized hardware and software?
A: Yes, we can provide not just customized hardware, but also software funcationalities.
Q: What's your delivery time?
A: For samples, 2-4 days, bulk order, 7-15 days generally
Shenzhen Joint Technology Co., Ltd.
- Annual Revenue : 8500000-9500000 USD
- Employees : 100~120
- Year Established: 2006
- Manufacturer
