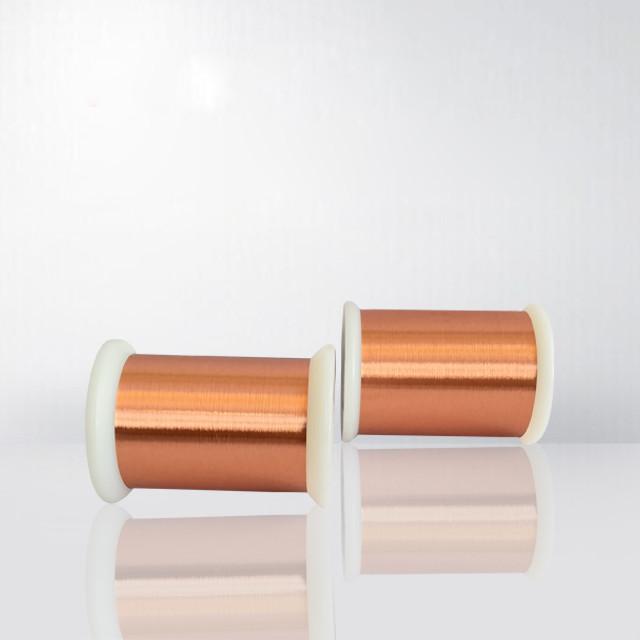

POLYERETHANE SUPER FINE ENAMELED ROUND COPPER WIRE CLASS 130-180 FOR TRANSFORMERS
FEATURES
1. Very good solderability
2. Dyeability
3. Less pinholes in brine
4. Less dielectric loss in
5. high frequency
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
APPLICATION
Switching transformers, information & telecommunications equipment, game machines, consumer goods, inverters and other similar devices.
SPECIFICATION
|
Product Description |
Polyurethane Enamelled Copper Round Wire Class 130 |
Polyurethane Enamelled Copper Round Wire, Class 155 |
Polyurethane Enamelled Copper Round Wire Class 180 |
Polyurethane Enamelled Copper Round Wire for Relay |
|
Type |
UEW/130 |
UEW/155 |
UEW/180 |
3UEW/155 |
|
Size(mm) |
0.012-0.800 |
0.012-0.800 |
0.012-0.800 |
0.012-0.800 |
|
Thermal Class |
130 |
150 |
180 |
155 |
|
Cut Through Temperature |
170 |
200 |
230 |
200 |
|
Heat Shock |
155 |
175 |
200 |
175 |
|
Solderability Temperature |
375±5 |
375±5 |
390±5 |
375±5 |
|
Reference Standard |
IEC60317-4 NEMAMW75C JIS 3202 |
EC 60317-20 NEMAMW79C JIS 3202 |
IEC 60317-51 NEMAMW82C JIS3202 |
IEC 60317-20 NEMAMW79C JIS 3202 |
|
Properties |
Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency |
Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency |
Solderable at 375°C Very high thermal properties |
Very good solderability Dyeability Less pinholes in brine Less dielectric loss in high frequency High winding speed |
|
Applications |
Micro transformer linear motor, relays, solenoid, micro motors, watch coils, magnet head, instruments coils |
Micro motors Transformers Automobile coils |
Micro motors Transformers Automobile coils |
Appliance relays, communications relays, micro motor |
